BT Adapter, Sound Card

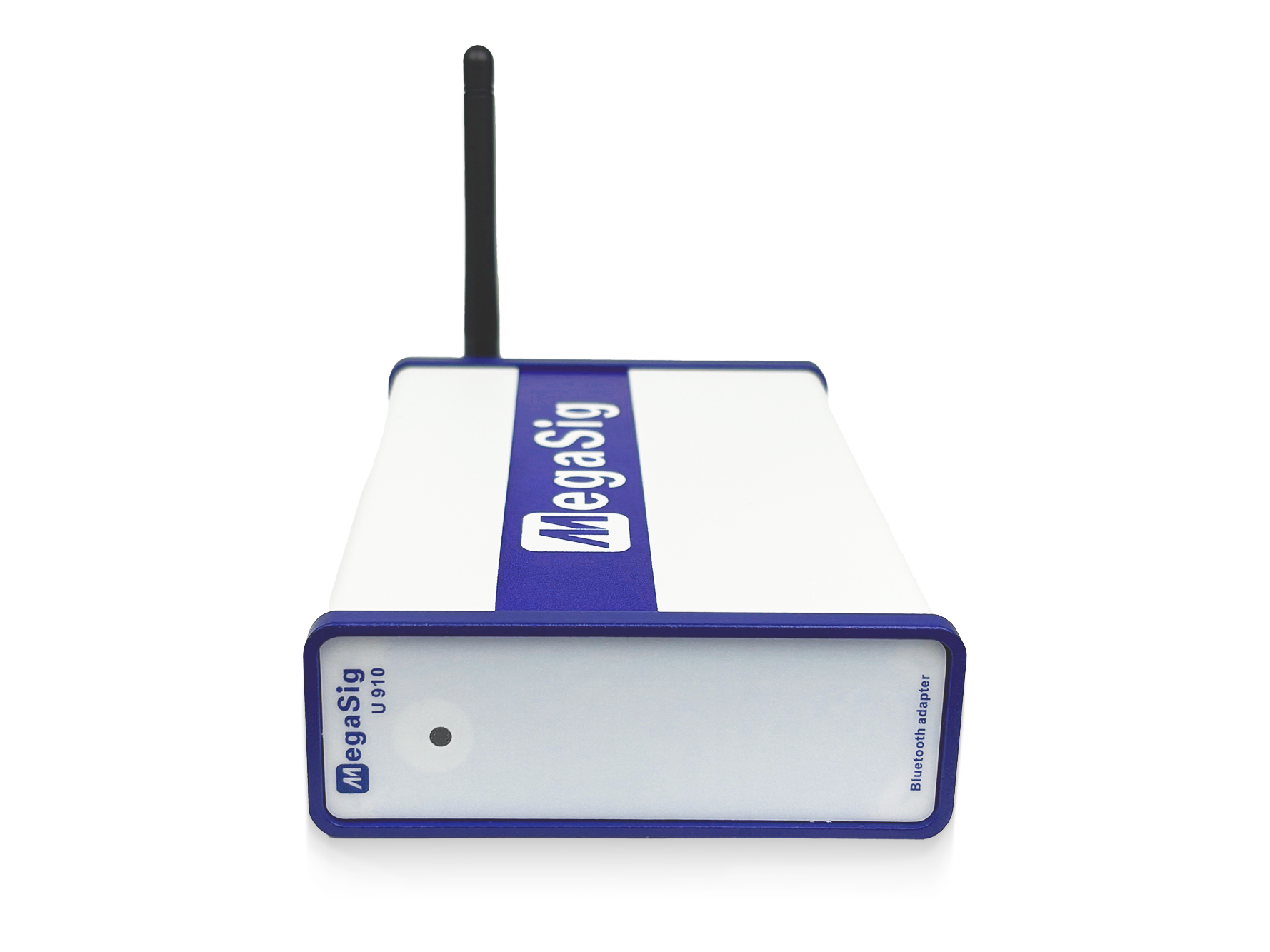

U 910

  • BT Adapter, Sound Card

  • It is designed for automated testing of Bluetooth products, supporting audio test (A2DP, HFP and other audio services), UI function testing (up and down, volume and volume, power, pause / answer). Support A2DP, HFP (Narrowband, Wideband), Support SBC, aptX.


  • Description
  • Download

Description


Specifications

Parameters

Speaker Channels

2

Mic Channels

1

Operating Voltage

5V/55mA

Dimension mm

96*33*140（W*H*L）

Working Temperature

-20 - 50℃

Bluetooth Command Control

USB


Audio Characteristic Parameters

Audio Parameters

Profile Version

A2DPv1.2/AVRCPv1.6/HFPv1.7

RF Power Consumption

Typical Max +8dBm

A2DP Encoding

SBC/aptX/aptX-LL/aptX-HD

HFP Encoding

CVSD/mSBC

Data Transfer Method

DMA
