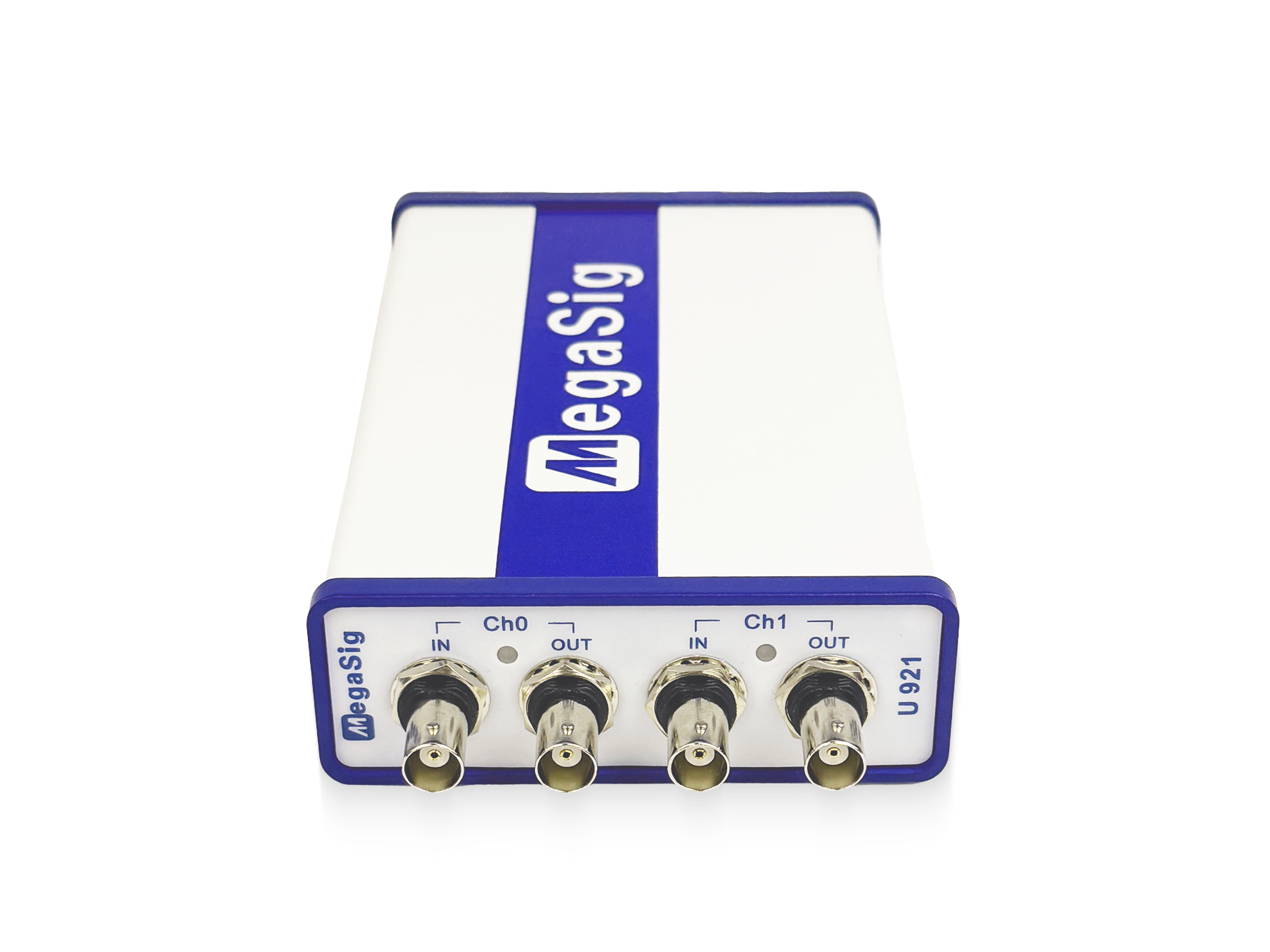

U 921

  • 2ch, IEPE
  • The U 921 is a portable conditioner providing IEPE excitation and amplification. It features 2-channel IEPE excitation and supports common IEPE sensors such as microphones and accelerometers. The standard version comes with ×1 and ×10 gain ranges.

  • Description
  • Download

Description

Specifications


ParameterValue
Full-load power consumption5V/200mA
Number of channels2
BusBNC
Product dimensions (mm)96*33*140
Operating temperature-20℃ - 50℃
Input impedance1Mohm
Output impedance100ohm
IEPE constant current source4mA
Frequency20Hz - 80kHz(-1dB)
Noise floor<16uVrms (Linear weighting)
Gain0dB(*1)和20dB(*10)
