4in, 4out WDM，4AMP

PM 6044

  • 4in, 4out WDM，4AMP

  • PM 6044 Light integrated with 4 channels DAC, 4 channels ADC, 4 channels IEPE, 4 channels power amplifier, decrease the complexity of connection, ideally for RD and production test.

  • Description
  • Download

Description

Specifications

ParameterValue
模拟采集通道数4
模拟输出通道数4
IEPE 通道4路（内置在采集前端）
IEPE 电源4mA
功放通道4
功放功率（每通道）16W
总线USB
产品尺寸 （L*W*H mm） 【不含接口长度】240*270*76.5
接口类型 BNC
适用温度范围-20 - 50℃


Specifications

Parameters

Input Channels

4

Output Channels

4

IEPE Channels

4 channels (integrated into the front-end acquisition)

IEPE Power

24V

Amplifier Channel

3

Amplifier Power

16W

Control

USB

Dimension   mm

240*270*76.5（L*W*H）

Connection Type

BNC

Working Temperature

-20 - 50℃


AI Specifications

AI Parameters

ADC Precision

24 Bit

ADC Type

Δ-Σ

Sample Rate Range    Hz

44.1k、48k、88.2k、96、192k

FIFO

1024

Mode Of Data Transmission

DMA

Input Range

+/- 4.5Vrms

Input Impedance

Input Positive Terminal to Ground: 1 Mohm

Flatness

20Hz - 20kHz，＜+/-0.15 dB     AI -3dB Bandwidth: 3Hz to 72kHz

AI Idle noise (uVrms)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value2023460

PS：[1]Short circuit source impedance < 50 ohm，Working temperature 23±5℃，IEPE OFF

AI SNR (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value10410278

PS：[1]Single-Ended Input，AC Coupling，Input Signal of 1kHz Sine Wave，0dBFS（4.5Vrms）

        [2]Nyquist Bandwidth

        [3]Linear Weighting

AIDynamic Range (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value999999

PS：[1]Single-Ended Input，AC Coupling，Input Signal of 1kHz Sine Wave，-1dBFS（4.01Vrms）

        [2]Nyquist Bandwidth

        [3]Linear Weighting

AI THD+N (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-94-94-77

PS：[1]Single-Ended Input，AC Coupling，Input Signal of 1kHz Sine Wave，-1dBFS（4.01Vrms）

        [2]Nyquist Bandwidth

        [3]Linear Weighting

AI THD (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-95-95-97

PS：[1]Single-Ended Input，AC Coupling，Input Signal of 1kHz Sine Wave，-1dBFS（4.01Vrms）

        [2]Nyquist Bandwidth

        [3]Linear Weighting

AI Cross talk (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-104-104-78

PS：[1]Single-Ended Input，AC Coupling，Input Signal of 1kHz Sine Wave，-1dBFS（4.01Vrms），The Source Impedance with the Signal Terminal Shorted Is Less Than 50 Ohms

        [2]Nyquist Bandwidth

        [3]Linear Weighting


AO Specifications

AO Parameters

DAC Precision

24 Bit

Sample Rate Hz

44.1kHz - 192kHz

Output Range

+/- 3.5Vrms

Gain Error

+/- 0.03dB

Output Impedance

Input Positive Terminal to Ground: 1 Mohm

Flatness

20Hz - 20kHz，＜+/- 0.08dB   AO - 3dB Bandwidth：4Hz - 75kHz

AO Idle noise (uVrms)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value242480
PS：[1]Short circuit source impedance < 50 ohm，Working temperature 23±5℃

AO SNR (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value10210292

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，0dBFS（3.5Vrms）

        [2]Nyquist Bandwidth

        [3]Linear Weighting

AO Dynamic Range (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value909089

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，-1dBFS（3.11Vrms）

        [2]Nyquist Bandwidth

        [3]Linear Weighting

AO THD+N (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-88-88-88

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，-1dBFS（3.11Vrms）

        [2]Nyquist Bandwidth

        [3]Linear Weighting

AO THD(dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-86-86-86

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，-1dBFS（3.11Vrms）

        [2]Nyquist Bandwidth

        [3]Linear Weighting

AO  Cross talk (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-103-103-93

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，-1dBFS（3.11Vrms）

        [2]Nyquist Bandwidth

        [3]Linear Weighting

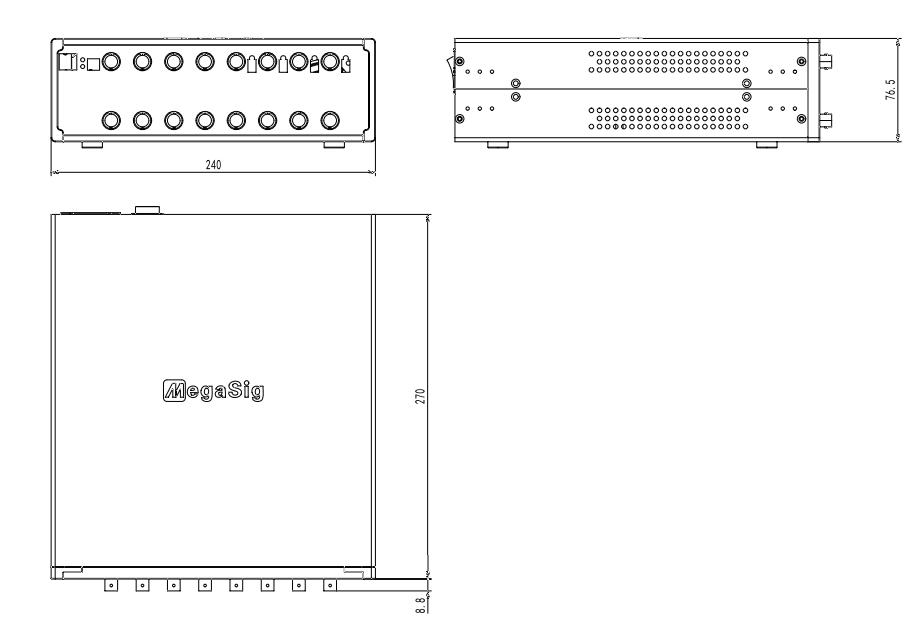

Dimension：mm

PM 6044尺寸.png
