BT Adapter,AAC,LHDC,LDAC

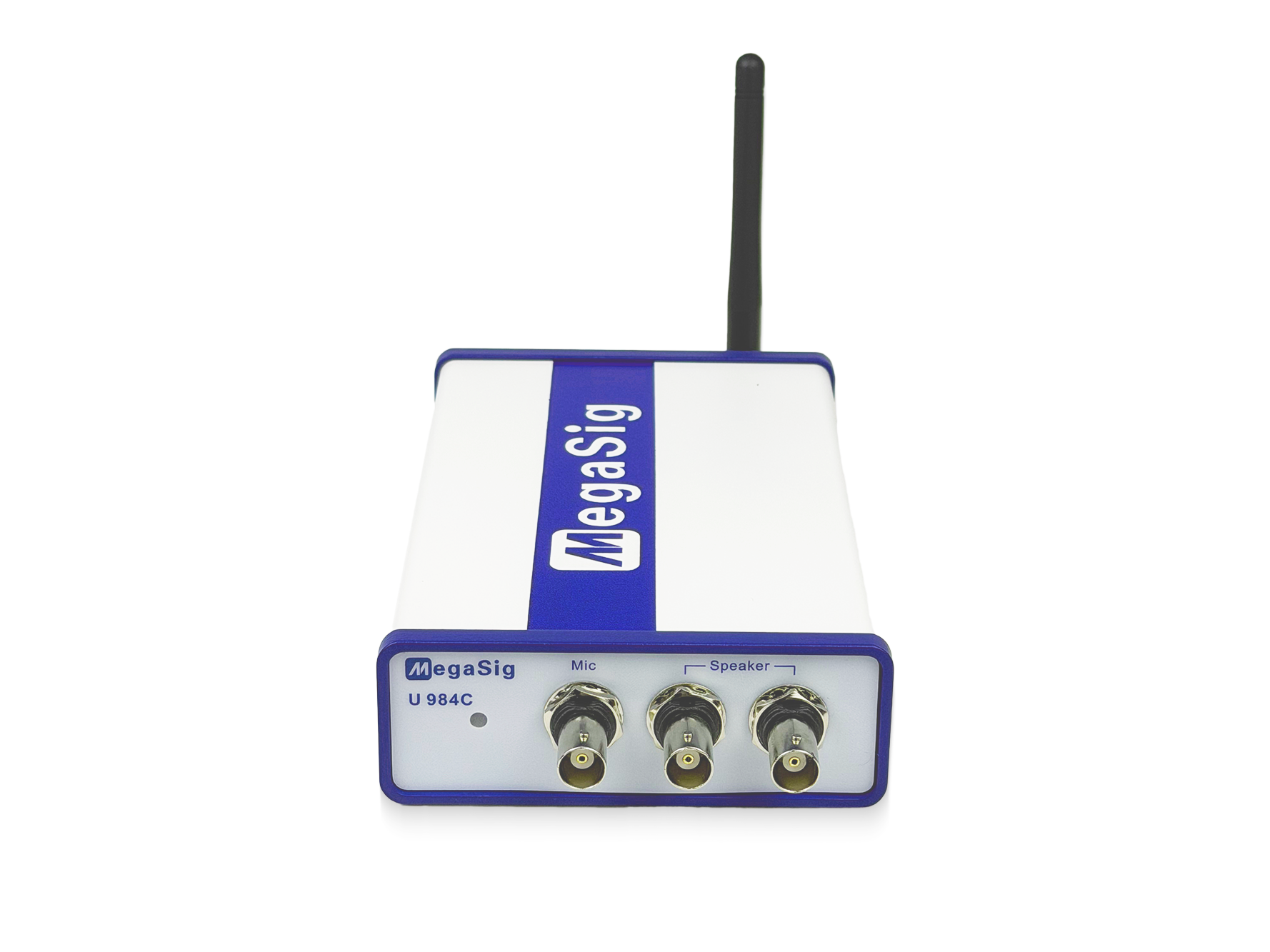

U 984C

  • BT Adapter,AAC,LHDC,LDAC

  • It is designed for automated testing of Bluetooth products, supporting audio test (A2DP, HFP and other audio services), UI function testing (up and down, volume and volume, power, pause / answer). Support A2DP, HFP (Narrowband, Wideband).Support SBC，AAC， APTX，APTX-HD，APTX-Adaptive，LDAC，LHDC V5.

  • Description
  • Download

Description


Specifications

Parameters

Driver

Shuttle

Operating Voltage/Current

5V/55mA

Dimension mm

96*33*140（W*H*L）

Working Temperature

-20 - 50℃

Bluetooth Command Control

USB

Speaker Channel Count

2

Mic Channels Count

1

Interface type

BNC, USB


Audio Characteristic Parameters

Audio Parameters

Profile Version

A2DPv1.2/AVRCPv1.6/HFPv1.7

RF operating frequency

2.441GHz

RF Power Consumption

Maximum typical value ± 15dBm

A2DP Encoding

CSBC/AAC/APTX/APTX-HD/APTX-Adaptive/LDAC/LHDC

HFP Encoding

CVSD/mSBC/APTX Voice

Speaker Bandwidth

20Hz - 41kHz

Mic Bandwidth

100Hz - 16kHz

Speaker Noise Floor

＜-90dBV

Mic Background Noise

＜-90dBV
