SS 720

1/2inch,contact measurement

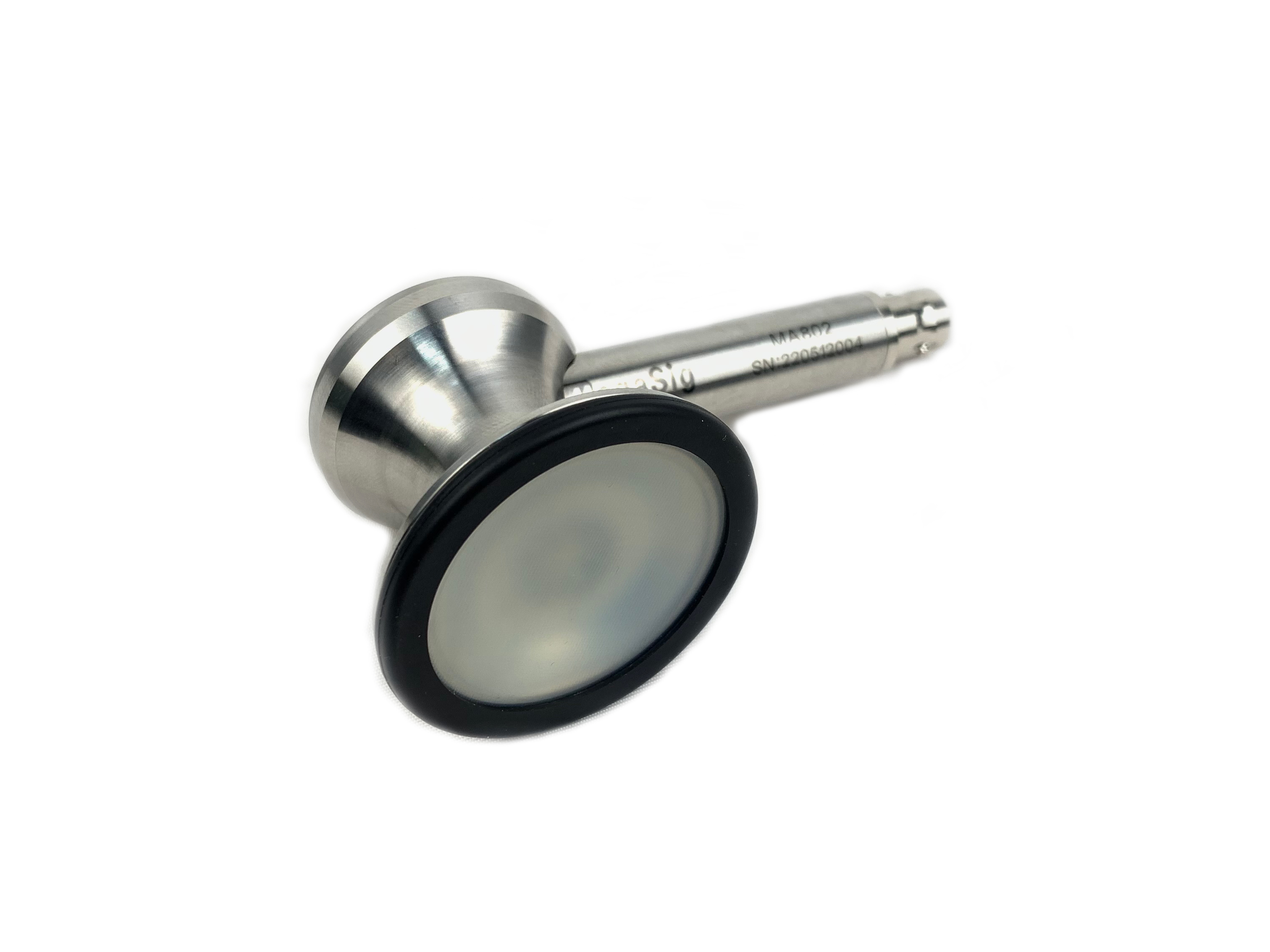

Industrial stethoscope is a contact-type acoustic sensor that collects sound by contacting the surface of the measured object with the diaphragm surface.The SS 720 has a built-in measuring microphone that uses thevibration of a large diaphragm to cause pressure changes in the coupling cavity, making it easier to measure subtle vibration signals during equipment operation. Due to its special structure,
The SS 720 is a one-piece structure that cannot be disassembled.SS 720 is a cost-effective low noise sensor, specifically designed for measuring abnormal noise and fault location during equipment operation. It is paired with the MegaSig PM 0083 IEPE signal conditioner for optimal testing results.

Description
Download

Description

Specifications

Parameter	Value
TEDS Function	No
Dimensions	1/2inch
Sound Field Type	Free field
Polarization Voltage	0V（Pre-polarized）
Frequency Response	3.15Hz – 20kHz ± 2dB 12.5Hz – 10kHz ± 1dB
Dynamic Range	17dB（A）-135dB （1000 Hz 失真<3%）
Noise Floor	17dB（A）
Sensitivity mV/Pa (dBV/Pa)	50mV (-26.0dB) ± 2dB
IEC 61094-4 Type	/
Maximum Output Voltage	5.6V
Output Impedance	<50Ω
Supply Power	2mA-20mA（Typical 4mA）
Pressure Equalization Method	Post-equalization
Connector Type	BNC
Operating Temperature	-20°C to 60°C
Temperature Coefficient	/
Humidity Coefficient	<0.1dB（10%- 90% no condensation）
Relative Humidity	10%- 90% no condensation
Static Pressure Coefficient	/

Specifications

Types of Acoustic Fields	Free Field
Polarization voltages	0V（Prepolarized）
Frequency range	3.15Hz – 20kHz ± 2dB 12.5Hz – 10kHz ± 1dB
Dynamic range	17dB（A）-135dB（1000 Hz THD<3%）
Background noise	17dB（A）
Sensitivity mV/Pa(dBV/Pa)	50mV (-26.0dB) ± 2dB
Maximum Output Voltage	5.6V
Output Impedance	<50Ω
Power Supply	2mA - 20mA（typical 4mA）
Pressure Equalization Method	Post-equalization
Connection	BNC
Temperature range, operation	-20℃ to 60℃
Temperature range, storage	Temperature：25℃±5℃，Humidity：50%±15%RH（Ensure the long-term stability of the sensor）
Humidity range non condensing	10 - 90% without condensation
Humidity coefficient	<0.1dB

Typical frequency response curve

Dimensions：mm


Dimensions（With Fixed Retainer）：mm

The measuring microphones we produce are precision sensors, and all aspects related to production are strictly controlled, including material selection, production processes, testing control, and production environment.

图片1.png After years of continuous improvement, we now use special nickel alloy materials as the core material for the diaphragm. Compared to other alloy materials, it exhibits higher sensitivity, lower distortion rate, and more stable long-term performance. The front body of the microphone is made of stainless steel, ensuring that the entire microphone maintains extremely robust structural characteristics even under various assembly conditions.

We adopt advanced production processes and fully automated precision machining equipment, which significantly reduces the accuracy errors caused by secondary clamping in traditional machining equipment. This greatly enhances the dimensional consistency, geometric accuracy, and overall quality stability of the products, providing reliable technical support for demanding application scenarios.

At the same time, we employ extremely rigorous testing and control measures, conducting quantitative testing on any links that may lead to product quality issues, and implementing test sequence control to prevent skip-station situations. The comprehensive MES control enables all data to be traceable, ensuring a high degree of consistency in sensor quality.

The entire production process of all our microphones is strictly carried out in a dust-free workshop, which can minimize the amount of dust in the air, thus creating a stable and pure working environment for the sensors. This ensures a long and stable lifespan for the sensors and maintains their excellent performance throughout daily use.
