A 810 Preamplifier

  • 1/2 inch, Microdot connector

  • A 810 is an IEPE 1/2-inch microdot connector preamplifier, specially designed for audio production line testing and laboratory use of high-demand multimedia products.

  • Description
  • Download

Description

Specifications

ParameterValue
Dimensions1/2inch
Frequency Response20Hz - 60kHz±0.2dB
Distortion＜0.1%
Operating CurrentTypical 4mA
Connector TypeMicrodot
Applicable Temperature-20°C to 60°C
Length64.9mm


Specifications

Frequency range

20Hz - 60kHz ±0.2dB

THD

＜0.1%

Power Supply

Typical 4mA

Connection

BNC

Operation temperature range

-20 - 60℃

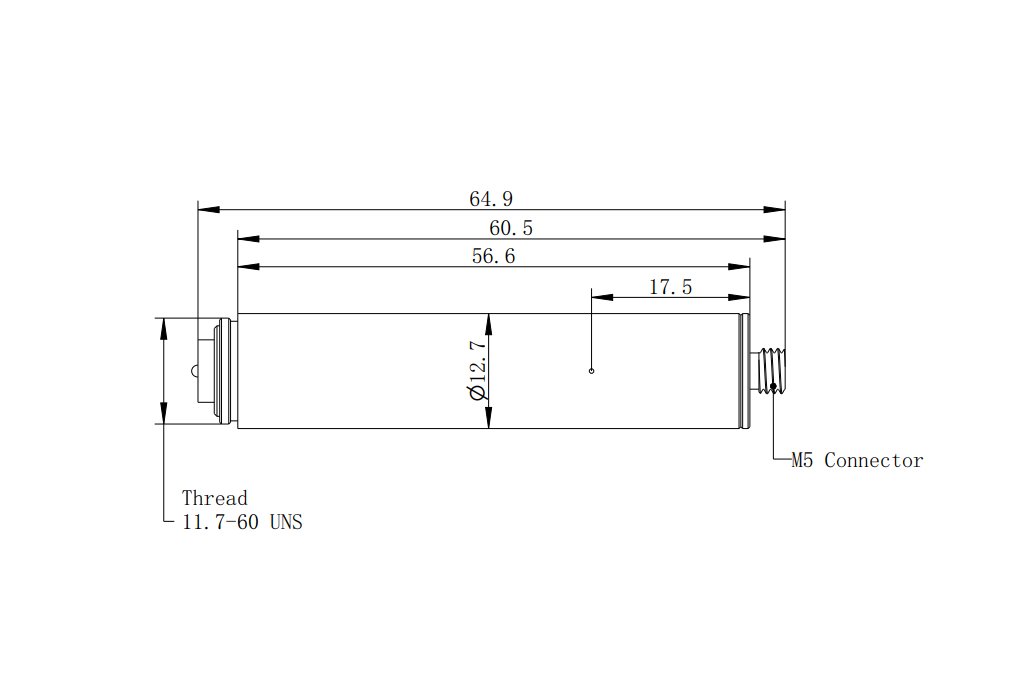

Dimensions

Overall length

64.9mm

Diameter connector

12.7mm
Thread 11.7-60 UNS

A 810-外形.png
