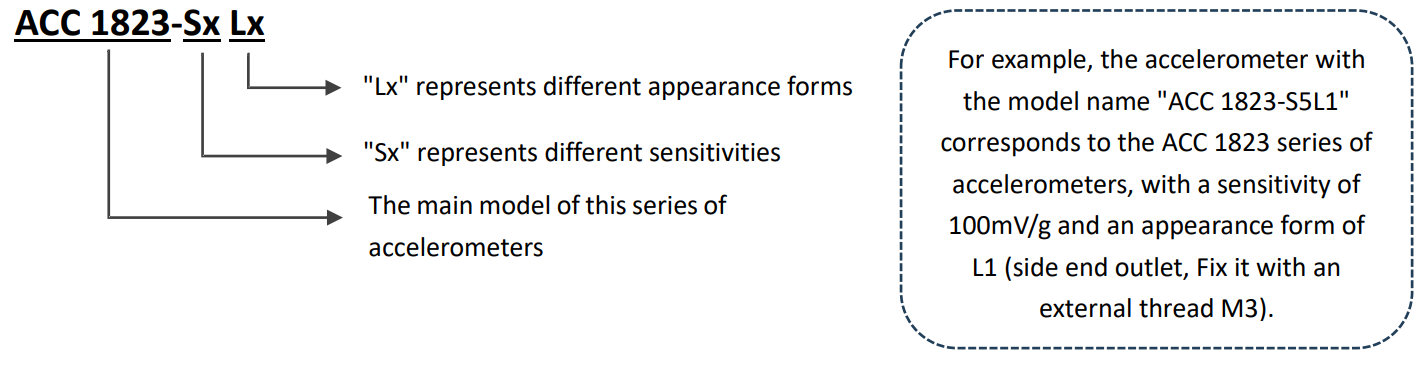

ACC 1823-SxLx

Uniaxial Accelerometer, miniature
The ACC 1823-SxLx series accelerometer is a piezoelectric acceleration sensor. It is equipped with a built-in charge amplifier. The sensitive element made of piezoelectric ceramic material endows it with excellent performance and ensures sufficient stability during long-term use.
A constant current power supply of 2-10mA is provided to this series of sensors using a coaxial cable, and the output signal is also output from this coaxial cable. Internationally, this is commonly known as the IEPE mode.
The ACC 1823-SxLx is often paired with built-in IEPE acquisition cards such as the MegaSig PM 6183 to achieve excellent testing results.

Specifications

Parameter	Value
Sensitivity Grade	S3
Factory Sensitivity	10mv/g（±10%）
Range (g)	±500
Frequency Response	0.5 - 10k （± 5%） 0.3 - 15k （± 10%）
Max Transverse Sensitivity	≤5%
Amplitude Linearity	≤1%
Broadband Resolution	0.0001grms
Mounted Resonance Frequency	＞40kHz
Shock Resistance	3kg
Operating Voltage Range	+18V - +28V
Operating Current Range	2mA - 10mA（Typical 4mA）
Operating Temperature Range	-40℃ - 120℃
Broadband Noise	1400μg
Frequency Noise (μg/√Hz)	10Hz：70 100Hz：35 1000Hz：10
Base Strain	0.002g/με
Magnetic Sensitivity	1.5g/T
Sensing Element	Piezoelectric Ceramics
Housing Material	Titanium alloy
Structure Type	Shear type
Weight	≤3.5g
Output Connector	M5-44

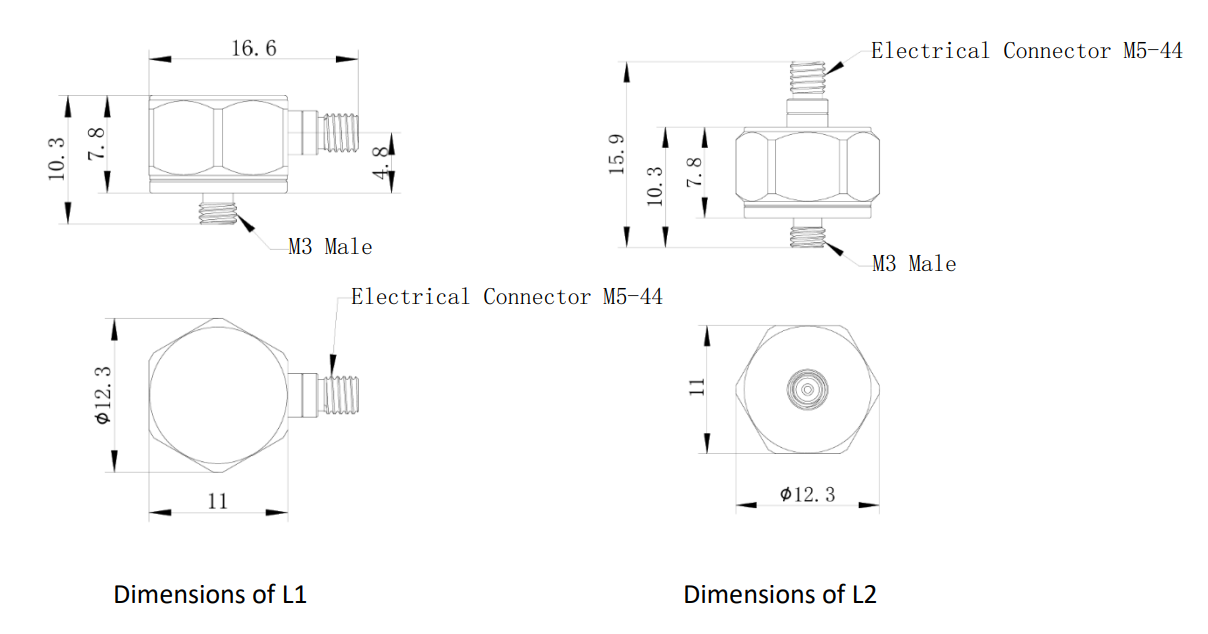

Output Connector Position	可选 L1（侧端出线）或 L2（顶端出线）
Mounting Interface	Bottom M3 stud

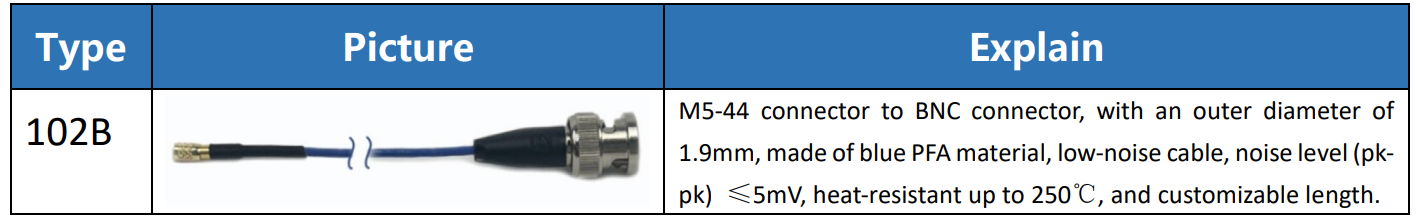

Accessories	/
