ACC 1861

Triaxial Accelerometer, TEDS
ACC 1861 is generally used in multi-axial vibration test analysis, vehicle, aviation and other research and development and applications.
ICP (or IEPE) piezoelectric acceleration sensor uses 1/4-28UNF four-core cable to supply 2-10mA constant source power to the sensor, which is commonly called ICP mode internationally.
ACC 1861 is often used with built-in IEPE acquisition cards such as MegaSig PM 6143 to achieve excellent test results.

Specifications

Parameter	Value
Sensitivity Grade	S5
Factory Sensitivity	100mv/g（±10%）
Range (g)	±50
Frequency Response	0.5Hz - 10kHz（±5%） 0.3Hz - 10kHz（±10%）
Max Transverse Sensitivity	≤5%
Amplitude Linearity	≤1%
Broadband Resolution	0.0005grms
Mounted Resonance Frequency	＞40kHz
Shock Resistance	2kg
Operating Voltage Range	+18V - +28V
Operating Current Range	2mA - 10mA（Typical 4mA）
Operating Temperature Range	-40℃ - 120℃
Broadband Noise	550μg
Frequency Noise (μg/√Hz)	10Hz：63 100Hz：20 1000Hz：6.3
Base Strain	0.002g/με
Magnetic Sensitivity	1.5g/T
Sensing Element	Piezoelectric Ceramics
Housing Material	Titanium alloy
Structure Type	Shear type
Weight	＜13
Output Connector	1/4-28 四芯插头
Output Connector Position	侧端出线
Mounting Interface	Bottom M5 Thread
Accessories	M5 mounting stud

Specifications

Sensitivity Level	S5
Sensitivity	100mV/g（±10%）
Measurement Range	±50g
Frequency Response	0.5Hz - 10kHz（±5%） 0.3Hz - 10kHz（±10%）
Transverse Sensitivity	≤5%
Non-Linearity	≤1%
Broadband Resolution	0.0005grms
Resonant Frequency	＞40kHz
Overload Limit (Shock)	2000g
Working Voltage	+18~＋28V
Working Current	2mA - 10mA (Typical 4mA）
Working Temperature	-40℃ - 120℃
Broadband Noise	550μg
Spectral Noise	10Hz：63 (μg/√Hz) 100Hz：20 (μg/√Hz) 1000Hz：6.3 (μg/√Hz)
Base Strain Sensitivity	0.002g/με
Magnetic Sensitivity	1.5g/T
Sensing Element	Piezoelectric Ceramics
Housing Material	Titanium
Sensing Geometry	Shear
Weight	≤10g

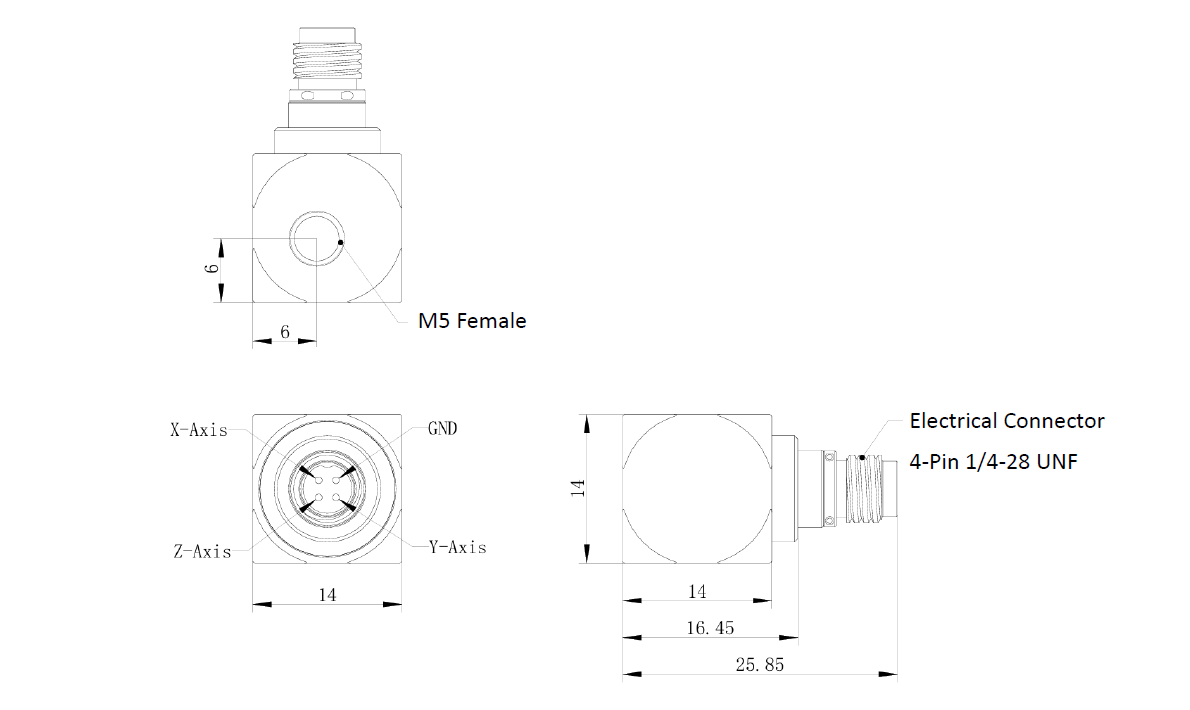

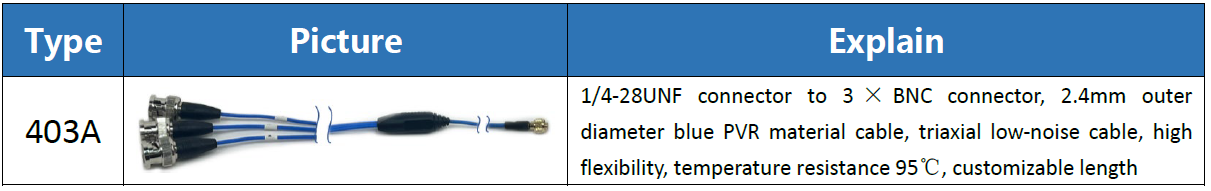

Electrical Connector	1/4-28 4-Pin
Electrical Connection Position	Side
Mounting Thread	M5 Female
Accessory	M5 Bolt
