SMB jack to BNC plug low noise cable 102D
SMB jack to BNC plug low noise cable, designed for sensor testing, with a characteristic impedance of 50 ohms. The cable features a pure nickel wire core for stable transmission, with an outer diameter of 1.9mm and made of blue PFA material. It has a fine wire diameter and high wear resistance.
This cable is widely used in audio testing systems, connecting amplifiers, speakers, sensors, and other devices.

Specifications

Cable Length	1.5m、3m、6m、9m、12m，Custom Cable Length
Temperature Range	-60℃ - 250℃
Impedance	50Ω

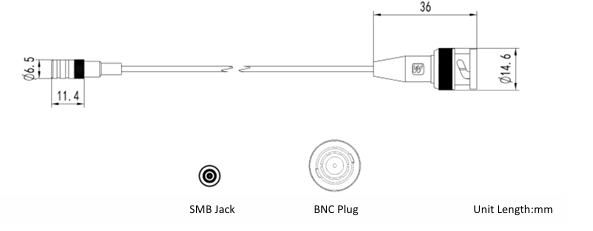

Connector Type	SMB Jack to BNC Plug
Strain Relief	Heat Shrink Tubing Formed, Black PE;PVC Molded Boot
Cable Specifications	Coaxial Cable, Inner Core of Pure Nickel Wire + PFA Insulation + Isolation Layer + braided high shielding ≥95% Cable Jacket Blue PFA OD:1.9mm±0.05mm

Ordering Information

PN	Model	Description
730010-015	102D015	SMB Jack to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, length 1.5m
730010-030	102D030	SMB Jack to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, length 3.0m
730010-060	102D060	SMB Jack to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, length 6.0m
730010-090	102D090	SMB Jack to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, length 9.0m
730010-120	102D120	SMB Jack to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, length 12.0m
730010-000	102D	SMB Jack to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, Customizable length
