HomeProductsAccessoriesCables2 socket SF12 plug to BNC plug standard cable

201B

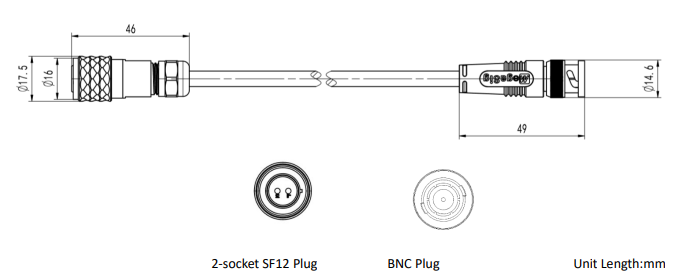

2 socket SF12 plug to BNC plug standard cable
2 socket SF12 plug to BNC plug standard cable, specially designed for audio systems, with a differential impedance of 100 ohms. The cable features a copper wire core for stable transmission, with an outer diameter of 6.8mm and made of black TPE material. It is highly flexible and durable.
This cable is widely used in audio testing systems, connecting amplifiers, speakers, sensors, and other devices.

Specifications

Cable Length	Custom Cable Length
Temperature Range	-15℃ - 60℃
Impedance	100Ω
Connector Type	2-Socket SF12 Jack to BNC Plug
Strain Relief	PVC Molded Boot
Cable Specifications	Two-Conductor Cable, Inner Core of Copper Wire + LDPE Insulation + Black PTFE Tape + Braided Shielding Cable Jacket Black TPE OD:6.8mm±0.1mm

Ordering Information

PN	Model	Description
730012-015	201B015	2-socket SF12 plug to BNC plug,cable jacket diameter 6.8mm,black TPE cable,temperature resistance 60℃	Length 1.5m
730012-030	201B030		Length 3.0m
730012-060	201B060		Length 6.0m
730012-090	201B090		Length 9.0m
730012-120	201B120		Length 12.0m
730012-000	201B		Customizable length
