16in，2out，balance & unbalance

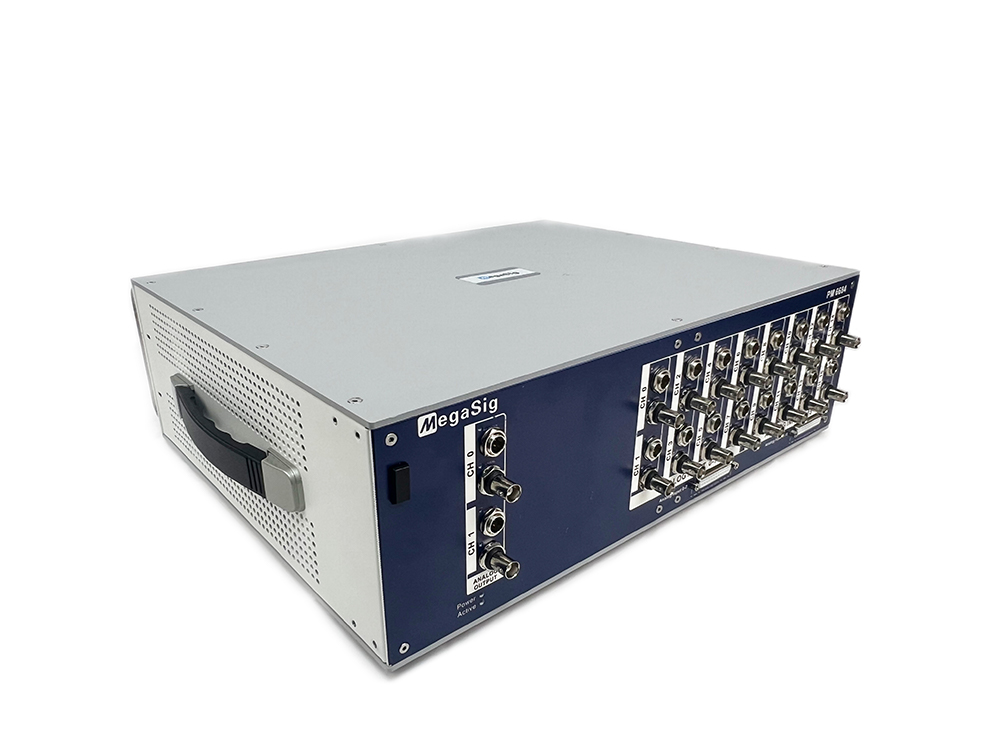

PM 6684

  • 16in，2out，balance & unbalance

  • The PM 6684 is a high-end audio analyzer specifically designed for acoustic testing.

    It features 16-channel analog signal input, with the option to choose between direct line output or connecting to an IEPE (Integrated Electronics Piece Equipment) constant current source exciter for conditioning microphones, artificial ears, accelerometers, and other IEPE-powered sensors.

    It also offers 2-channel analog signal output, with the flexibility to select direct line output or to connect to an amplifier for output, thereby enabling the driving of artificial mouths, speakers, and other high-power loads.

    This product boasts abundant channel resources and excellent specifications, capable of meeting the mass production acoustic testing needs for consumer products, assisting engineers in creating better products.


  • Description
  • Download

Description

Specifications

ParameterValue
模拟采集通道数16
模拟输出通道数2
总线USB
产品尺寸 （L*W*H mm） 【不含接口长度】440*350*134 【加配件后尺寸470*390*143】
接口类型 BNC，CANNON，D-SUB25
适用温度范围-20 - 50℃
外部触发接口SMB


Specifications

Parameters

Input Channels

16

Output Channels

2

Control

USB

Dimension   mm

440*350*134（L*W*H）

Connection Type

BNC，CANNON, D-SUB25

Working Temperature

-20 - 50℃

External Trigger Interface

SMB


AI Specifications

AI Parameters

ADC Precision

24 Bit

ADC Type

Δ-Σ

Sample Rate Range    Hz

1k - 192k

FIFO

1024

Mode Of Data Transmission

DMA

Input Range

+/- 125Vp

Gain Error

+/- 0.01dB

Input Impedance

Unbalance：300ohm ，600ohm ，100kohm    Balance：300ohm ，600ohm ，200kohm

Flatness

20Hz - 20kHz，192kS/s，＜+/-0.008 dB

AI Idle Noise (uVrms)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value2.24.06.5

ps：[1]Short circuit source impedance < 50 ohm，Working temperature 23±5℃

        [2]±1Vp Acquisition Range

        [3]AC coupling

AI SNR (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value120115108

PS：[1]Single-Ended Input, AC coupling, ±10V Peak (Vp) Range, Input Signal Amplitude at -1dBFS (9Vp), output impedance 20ohm, Input impedance 100kohm

        [2]Bandwidth, 22,4k、45k、90k

        [3]Linear weighting

        [4]AC coupling

AI  Dynamic Range (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value117112109

PS：[1]Single-Ended Input, AC coupling, ±10V Peak (Vp) Range, Input Signal Amplitude at -1dBFS (9Vp), output impedance 20ohm, Input impedance 100kohm

        [2]Bandwidth, 22,4k、45k、90k

        [3]Linear weighting

        [4]Hanning window

        [5]AC coupling

AI THD+N (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-105-95-92

PS：[1]Single-Ended Input, AC coupling, ±10V Peak (Vp) Range, Input Signal Amplitude at -1dBFS (9Vp), output impedance 20ohm, Input impedance 100kohm

        [2]Bandwidth, 22,4k、45k、90k

        [3]Linear weighting

        [4]AC coupling

AI Cross Talk (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-112-106-99

PS：[1]Single-Ended Input, AC coupling, ±10V Peak (Vp) Range, Input Signal Amplitude at -1dBFS (9Vp), output impedance 20ohm, Input impedance 100kohm

        [2]Bandwidth, 22,4k、45k、90k

        [3]Linear weighting

        [4]AC coupling


AO Specifications

AO Parameters

DAC Precision

24 Bit

Sample Rate  Hz

1k - 192k

Output Range

+/- 10.5Vrms（Unbalance），+/- 21Vrms（Balance）

Gain Error

+/- 0.01dB

Output Impedance

Unbalance：20ohm，50ohm，75ohm，100ohm，600ohm   Balance： 40ohm，100ohm，150ohm，200ohm，600ohm

Maximum output power of external resistor

4ohm 1.56w ; 8ohm 1.125w

Flatness

20Hz - 20kHz，＜+/-0.008 dB

AO Idle Noise (uVrms)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value1.32.03.0
PS：[1]Data acquisition device impedance greater than 1 Mohm, Operating temperature of 23±5°C

        [2]AC coupling

AO SNR (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value125122119

PS：[1]Differential Output, AC Coupling, Output signal amplitude of 2.5Vrms (Root Mean Square), Output impedance of 20 ohms, Input impedance of 100 Kohms

        [2]Bandwidth, 22,4k、45k、90k

        [3]Linear weighting

        [4]AC coupling

AO Dynamic Range (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value112110108

PS：[1]Differential Output, AC Coupling, Output signal amplitude of 2.5Vrms (Root Mean Square), Output impedance of 20 ohms, Input impedance of 100 Kohms

        [2]Bandwidth, 22,4k、45k、90k

        [3]Linear weighting

        [4]AC coupling

AO THD+N (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-105-98-90

PS：[1]Differential Output, AC Coupling, Output signal amplitude of 2.5Vrms (Root Mean Square), Output impedance of 20 ohms, Input impedance of 100 Kohms

        [2]Bandwidth, 22,4k、45k、90k

        [3]Linear weighting

        [4]AC coupling

AO Cross Talk (dB)

Sample Ratefs=48kS/s
fs=96kS/s
fs=192kS/s
Typical Value-125-120-118

PS：[1]Differential Output, AC Coupling, Output signal amplitude of 2.5Vrms (Root Mean Square), Output impedance of 40 ohms, Input impedance of 200 Kohms

        [2]Bandwidth, 22,4k、45k、90k

        [3]Linear weighting

        [4]AC coupling
