PM 6183

  • 8in，2out，balance

  • The PM 6183 is a data acquisition card specifically designed for in-line mass production testing.

    It features 8-channel analog signal input and 2-channel analog signal output, capable of connecting to 4 sets of 3.5mm audio cables for stereo monitoring, with adjustable monitoring gain.

    It allows the enabling or disabling of the IEPE (Integrated Electronics Piece Equipment) constant current source exciter, with adjustable AC/DC coupling, for conditioning IEPE-powered sensors such as microphones, artificial ears, and accelerometers.

    The card utilizes digital optocoupler isolation for superior anti-interference capabilities and supports rotational speed signal acquisition.

    It is suitable for acoustic quality analysis, electroacoustic analysis, vibration analysis, NVH (Noise, Vibration, and Harshness) analysis, and other demanding measurement applications for capturing sound and vibration data.

    Additionally, the PM 6183 offers an open application protocol interface, a lightweight, platform-independent interface for programming PM 6183 data acquisition with your own (or third-party) software.


  • Description
  • Download

Description

Specifications

ParameterValue
Input Channels8
Output Channels2
IEPE Channels8（integrated into the front-end acquisition）
Stereo Monitoring Channels8（4 L/R）
IEPE4mA
BusUSB
Dimension （L*W*H mm）【Excluding BNC connectors】240*270*76.5
Interface typeBNC
Operating temperature-20 - 50℃
Operation voltage220V
Connection TypeAC/DC
Trigger SynchronizationInternal Trigger Latency: 1.2 milliseconds

AI Specifications

AI Parameters

ADC Precision

24 Bit

ADC Type

Δ-Σ

Sample Rate Range    Hz

1k - 100k

FIFO

1024

Mode Of Data Transmission

DMA

Input Range

+/- 10Vrms （Measurement ranges 1Vrms、5Vrms、10Vrms）

Input Impedance

Input Positive Terminal to Ground: 1 Mohm

Gain Error

AC coupling +/-0.03 dB      DC coupling +/-0.01 dB

Flatness20Hz - 20kHz，Value 0.03dB     5Hz - 50kHz，  Maximum Value 0.08dB

AI Idle noise (uVrms)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value11
15
PS：[1]Short-circuit source impedance less than 50 ohms，Operating temperature of 23±5 degrees Celsius，AC coupling，Linear weighting，1Vrms

AI SNR (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value115
113

PS：[1]Differential Input，AC Coupling，Input Signal of 1kHz Sine Wave，10Vrms Range，10Vrms

        [2] Bandwidth 22.4k、45k

        [3] Linear Weighting

AI Dynamic Range (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value110
109

PS：[1]Differential Input，AC Coupling，Input Signal of 1kHz Sine Wave，5Vrms Range，2Vrms

        [2] Bandwidth 22.4k、45k

        [3] Linear Weighting，SFDR Testing Method

AI THD+N (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value-96
-96

PS：[1]Differential Input，AC Coupling，Input Signal of 1kHz Sine Wave，5Vrms Range，2Vrms

        [2] Bandwidth 22.4k、45k

        [3] Linear Weighting，SFDR Testing Method

AI THD (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value-110-109

PS：[1]Differential Input，AC Coupling，Input Signal of 1kHz Sine Wave，5Vrms Range，2Vrms

        [2] Bandwidth 22.4k、45k

        [3] Linear Weighting


AI Cross Talk (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value-104-100

PS：[1]Differential Input，AC Coupling，Input Signal of 1kHz Sine Wave，5Vrms Range，2Vrms

        [2] Bandwidth 22.4k、45k

        [3] Linear Weighting

AO Specifications

AO Parameters

DAC Precision

24 Bit

Sample Rate Hz

1k - 192k

Output Range

+/- 10Vrms （Measurement ranges 5Vrms、10Vrms）

Gain Error

AC : +/- 0.03dB   DC : +/-0.1dB

Output Impedance

Input Positive Terminal to Ground: 75 ohm

Flatness

20Hz - 20kHz，Maximum Value 0.12dB   5Hz - 50kHz， Maximum Value 0.5dB

AO Idle noise (uVrms)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value1834
PS：[1]Data Acquisition Device Impedance Greater Than 1 Mohm，Working temperature 23±5℃

AO SNR (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Minimum Value108103

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，10Vrms range，10Vrms

        [2]Bandwidth 22.4k、45k、90k

        [3]Linear Weighting

AO Dynamic Range (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Minimum Value108108

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，5Vrms range，4.5Vrms

        [2]Bandwidth 22.4k、45k、90k

        [3]Linear Weighting，SFER Testing Method


AO THD+N (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value-103-98

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，5Vrms range，4.5Vrms

        [2]Bandwidth 22.4k、45k、90k

        [3]Linear Weighting


AO THD+ (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value-108-108

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，5Vrms range，4.5Vrms

        [2]Bandwidth 22.4k、45k、90k

        [3]Linear Weighting

AO  Cross talk (dB)

Sample Ratefs=48kS/s
fs=96kS/s
Maximum Value-99-99

PS：[1]Differential Output，AC Coupling，Output Signal of 1kHz Sine Wave，5Vrms range，4.5Vrms

        [2]Bandwidth 22.4k、45k、90k

        [3]Linear Weighting

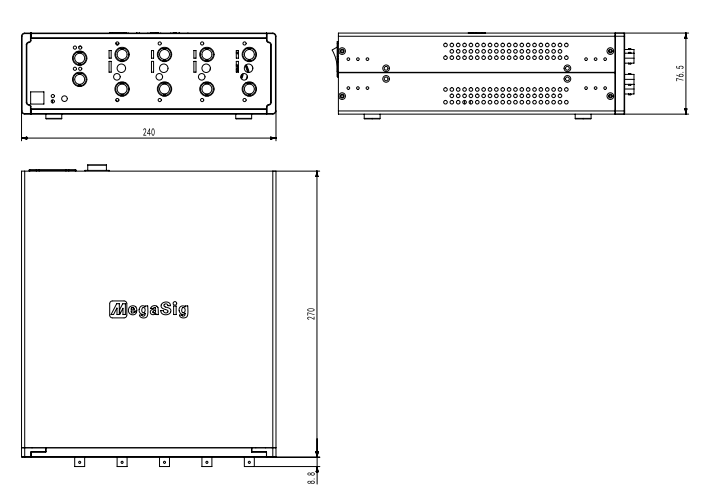

Dimension（unit：mm）

PM 6183尺寸.png
