Manual Portable Shielding Box for Hearing Aid Test

MB 62

  • Manual Portable Shielding Box for Hearing Aid Test
  • MB 62 is a shielding box specifically designed for hearing aid testing, with a larger inner cavity that effectively prevents internal reflections and reverberation, providing a stable and reliable acoustic environment for hearing aid tests. The outer cavity is made of full sheet metal, ensuring good electromagnetic shielding.

    The product features a unique compression design in terms of acoustics, achieving four layers of complex sound insulation on a limited wall thickness. It uses soundproof velvet as the surface layer, solving the problem of instability caused by the aging and damage of the wedges during use, and achieving excellent sound isolation in a limited and compact space.


  • Description
  • Download

Description


Specifications


Parameters

Outer Dimensions

(W)340×(L)365×(H)280mm±5mm

Inner Dimensions

(W)200×(L)160×(H)90mm±5mm

Isolation Degree

Audio Frequency: External 80dBA, Internal ≤50dBA, Radio Frequency: 0.8 GHz - 2.4 GHz, Isolation ≤30dB

Number of BNC Connectors

4(Customizable)

Switch Type

Manual Switch

Programmable Control

Not Supported

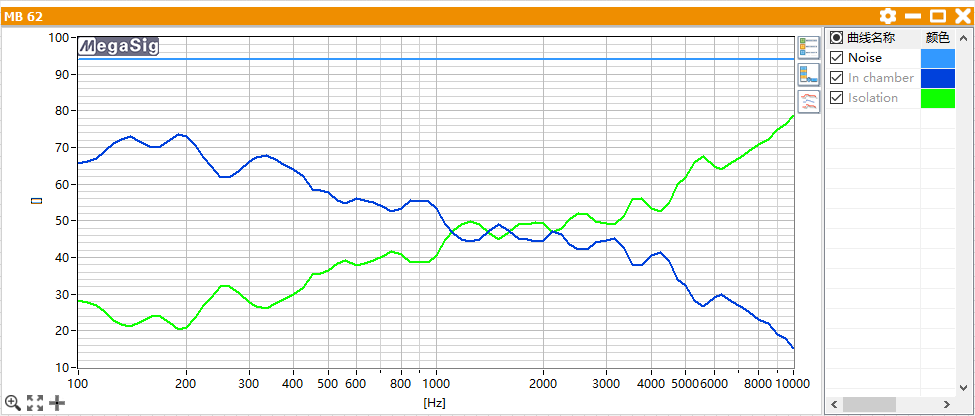

Isolation curve


MB 62隔离度图片.PNG
