Ultra high bandwidth measurement audio source

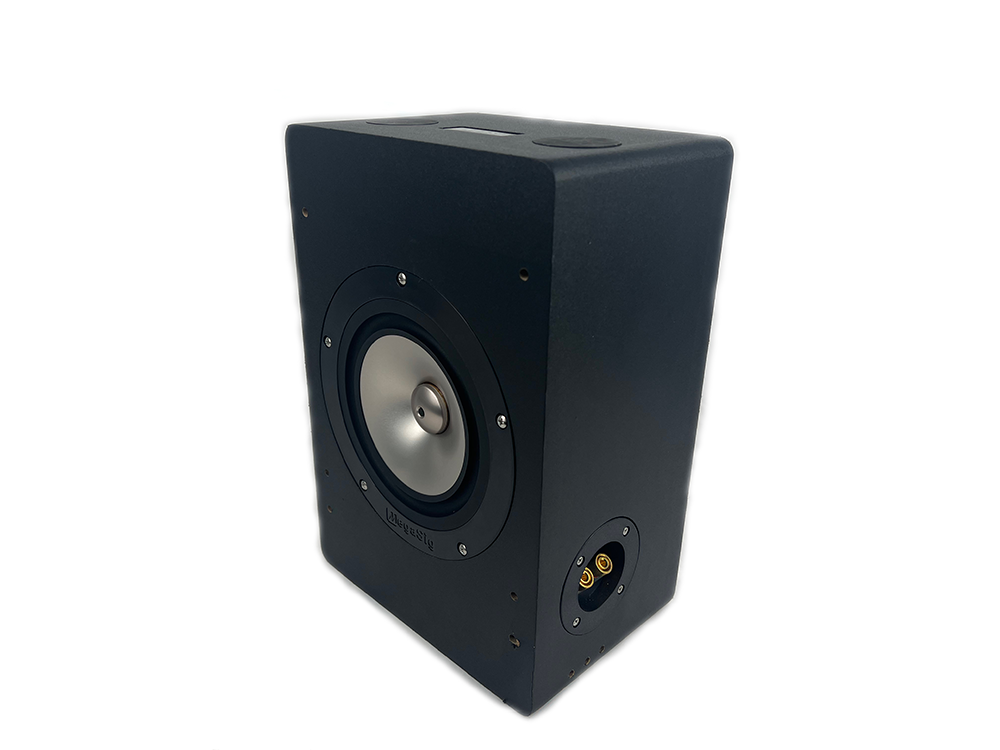

SB 11

  • Ultra high bandwidth measurement audio source

  • SB 11 is a sound source specifically designed for ultrasonic audio testing in consumer electronics research and production lines. It is high-frequency enhanced and suitable for audio testing with high frequency requirements, such as mobile phone testing.

    The unique compression design of the rear chamber of this product, combined with the long stroke linear displacement design of the horn unit, provides strong guarantee for the full frequency band energy response characteristics.


  • Description
  • Download

Description

Specifications

ParameterValue
Distortion100 - 40kHz：出厂Standard小于1%；通常情况下小于0.8% （94dB SPL, 100MRPmm处）
F0/
Frequency Response Curve经补偿后输出声压94dB ± 0.2dB（100Hz - 40kHz）距离100mm处
Impedance4ohm
Continuous Maximum Power20W
Speaker Size6.5寸
Outer Dimensions320mm*220mm*150mm
Connector双边香蕉插头


Specifications

Parameters

Dimension mm

320*220*150

Frequency Response Curve

Compensated output sound pressure is 94dB ± 0.2dB (100Hz - 40kHz)

Rated Impedance

4ohm

Rated Power

20W

Interface

Banana Plug

THD

From 100Hz to 40kHz: The factory standard is less than 1%; typically less than 0.6% (at 94dB Sound Pressure Level, 100mm from the Mouth Reference Point)

Speaker Dimensions

6.5 inches
