ACC 1834S3

Micro three-axis accelerometer
MegaSig piezoelectric acceleration sensor, built-in charge amplifier, the use of piezoelectric ceramic material to make the sensing element has good performance, can be more extreme temperature and a wider measurement range of stable operation.

Specifications

Parameter	Value
Sensitivity Grade	-
Factory Sensitivity	10mv/g（±10%）
Range (g)	±500
Frequency Response	1 - 15k（±5%）
Max Transverse Sensitivity	≤5%
Amplitude Linearity	≤1%
Broadband Resolution	0.0005grms
Mounted Resonance Frequency	＞50kHz
Shock Resistance	2kg
Operating Voltage Range	+18V - +28V
Operating Current Range	2mA - 10mA（Typical 4mA）
Operating Temperature Range	-40℃ - 120℃
Broadband Noise	5000μg
Frequency Noise (μg/√Hz)	10Hz：350100Hz：701000Hz：30
Base Strain	0.001g/με
Magnetic Sensitivity	1.5g/T
Sensing Element	Piezoelectric Ceramics
Housing Material	Titanium alloy
Structure Type	Shear type
Weight	＜3.5
Output Connector	1/4 - 28四芯插座
Output Connector Position	侧端出线
Mounting Interface	M4 Thread

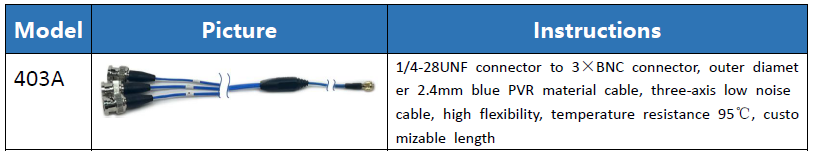

Accessories	蜂蜡*1

Specifications

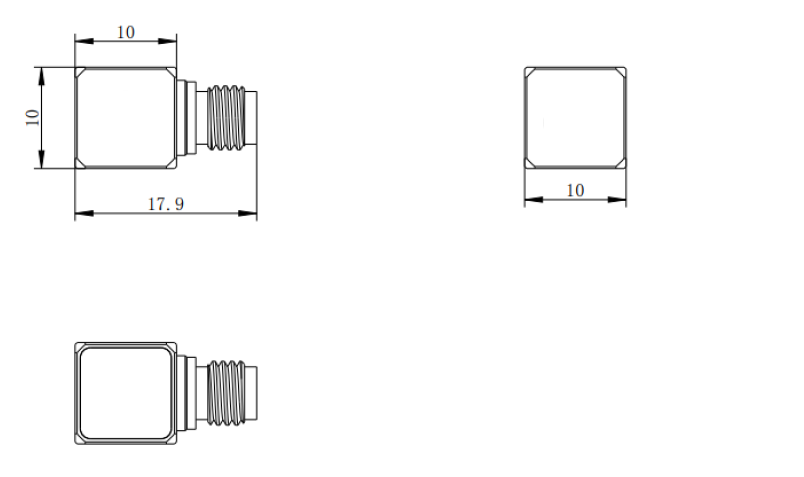

Physical

Sensing Element	Ceramic
Housing Material	Titanium
Sensing Geometry	Shear
Weight	＜3.5g
Electrical Connector	1/4-28 4-Pin
Electrical Connection Position	Side
Mounting	M3 internal thread
Accessory	Petro Wax
