SS 824-52

• Uniaxial Accelerometer，Force Sensor，Structural Acoustic Measurement

• SS 824-52 Structure Acoustic Measurement Sensor integrates a high-sensitivity, low-noise accelerometer, a rubber vibration isolation mount, and a built-in force sensor. When combined with the vibration isolation mount and force sensor, it is typically employed in automated testing applications such as automotive NVH testing, end-of-line inspection of motor-driven products, and modal testing scenarios.

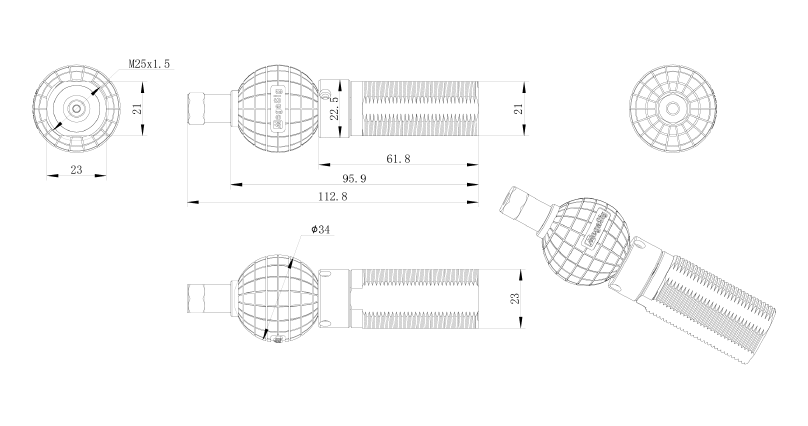

  The sensor assembly of the SS 824-52 features a monolithic, non-separable structure. The rubber vibration isolation mount prevents mechanical resonance during testing, while the integrated force sensor ensures consistent applied pressure in each operation, thereby delivering high-quality, high-bandwidth, and highly repeatable test results.

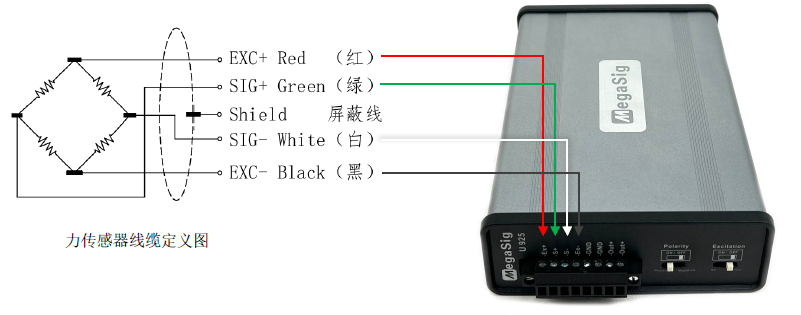

  For optimal performance, the internal accelerometer of the SS 824-52 should be paired with the MegaSig PM 0084 IEPE Signal Conditioner, and its built-in force sensor with the MegaSig U 925 Full-Bridge Strain Module.
