AM 580 Mouth Simulator

AM 580

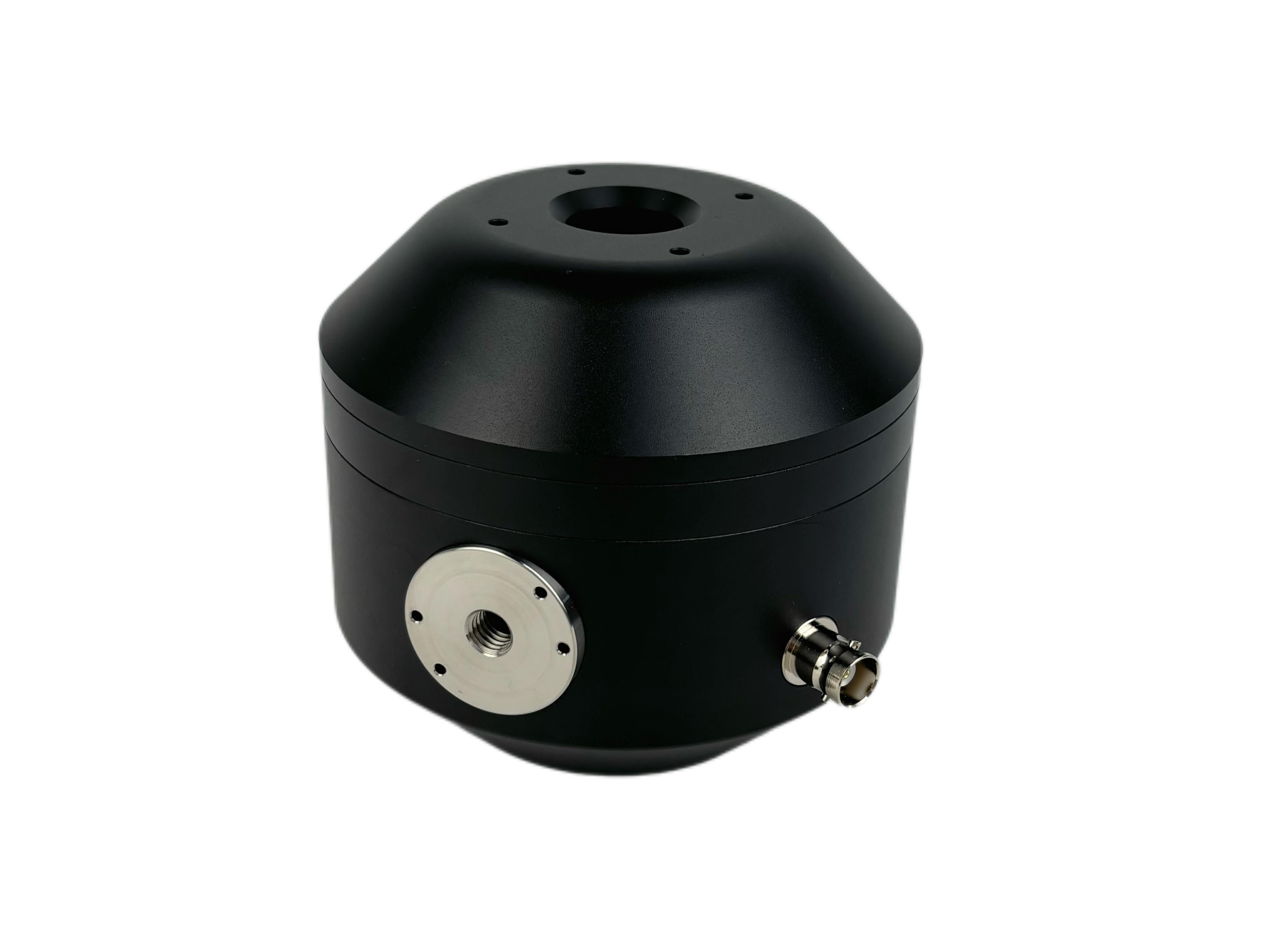

AM 580 mouth simulator is used to accurately simulate the sound source of the sound field near the human mouth, and is suitable for the test of acoustic parameters such as frequency response and distortion of telephone transmitters and microphones.
AM 580 boasts extremely high sensitivity and wideband transducing efficiency. With a typical 25mm MRP distance and operating at a sound pressure level of 94dB, it achieves a distortion of less than 1% across the frequency range of 200Hz to 10kHz.

Specifications

Parameter	Value

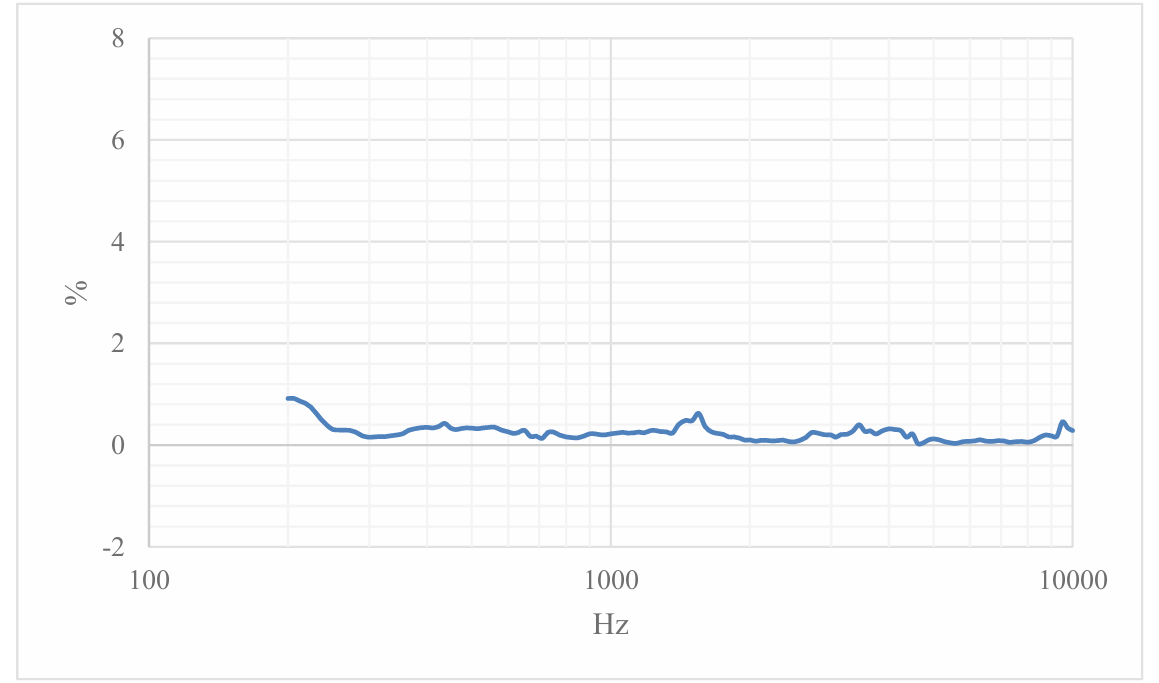

Distortion	200Hz – 10kHz：Factory Standard ＜ 1%（94dB SPL, 80mmMRP处）

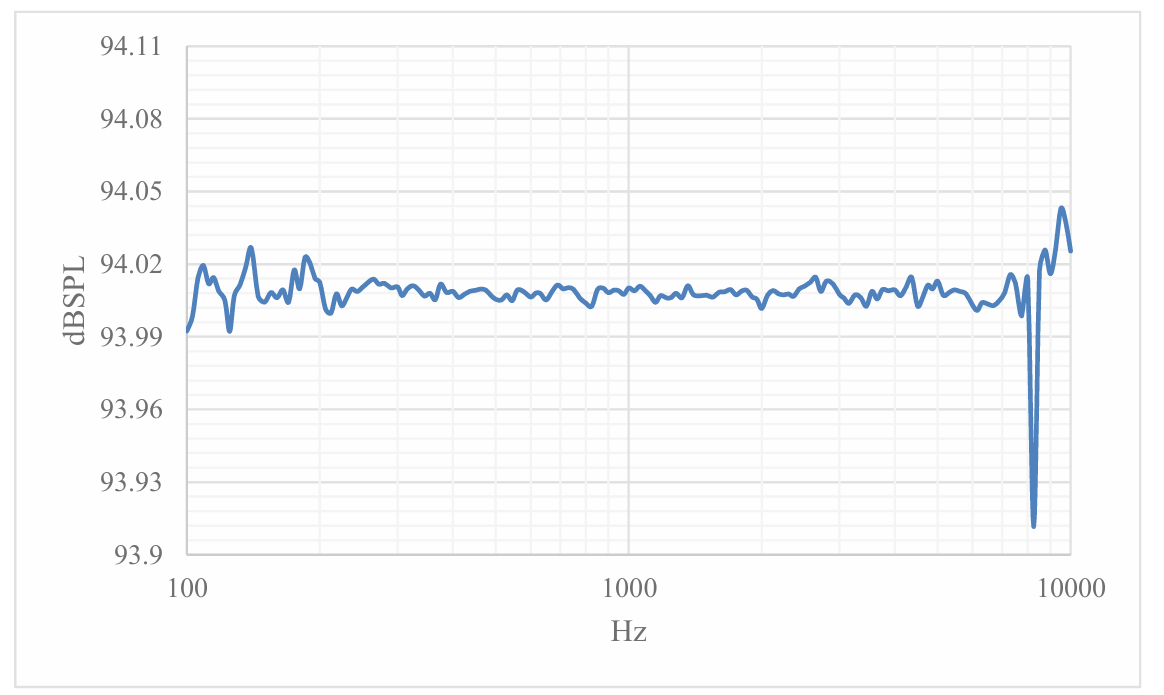

Frequency Response Curve	After compensation, the output sound pressure is 94dB ± 0.1dB（100Hz - 10kHz）
Impedance	4ohm
Continuous Maximum Power	10W
Sound Outlet Diameter	Φ20mm
Diameter	Φ104mm
Height	100mm
Connector	BNC
Standard	/

Specifications

Parameters
THD	200Hz – 10kHz：The Factory Standard Is Less Than 1%（94dB SPL, 80mmMRP）
Frequency Response	The compensated output sound pressure is 94 dB ± 0.1 dB (100 Hz - 10 kHz)
Impedance	4ohm
Continuous Maximum Power	10W
Sound Outlet Diameter	Φ20mm
Mouth Ring	Outer Diameter：Φ48mm Height：11mm
Diameter	Φ104mm
Height	100mm
Weight	1276g
Interface	BNC
