Charge Preamplifier

A 821

  • Charge Preamplifier

  • A 821 is a charge preamplifier. Its function is to convert the high‑impedance charge signal generated by charge‑type piezoelectric sensors into a low‑impedance voltage signal, enabling such sensors to be used with IEPE power supplies.

    A 821 can be applied to various charge‑type piezoelectric sensors, including charge‑type piezoelectric accelerometers, force sensors, and pressure sensors, giving it a wide range of applications.


  • Description
  • Download

Description

Specification

Parameters

Frequency range (±5%)

1 - 20000Hz

Gain (±10%)

10mV/pC

Bias voltage

8 - 12V

Operating voltage range

20 - 30VDC

Operating current range

4 - 20mA

Operating temperature range-40℃ - +100℃

Input connector (sensor side)

M5

Output connector (IEPE side)

BNC
Housing materialTitanium alloy
Weight10g

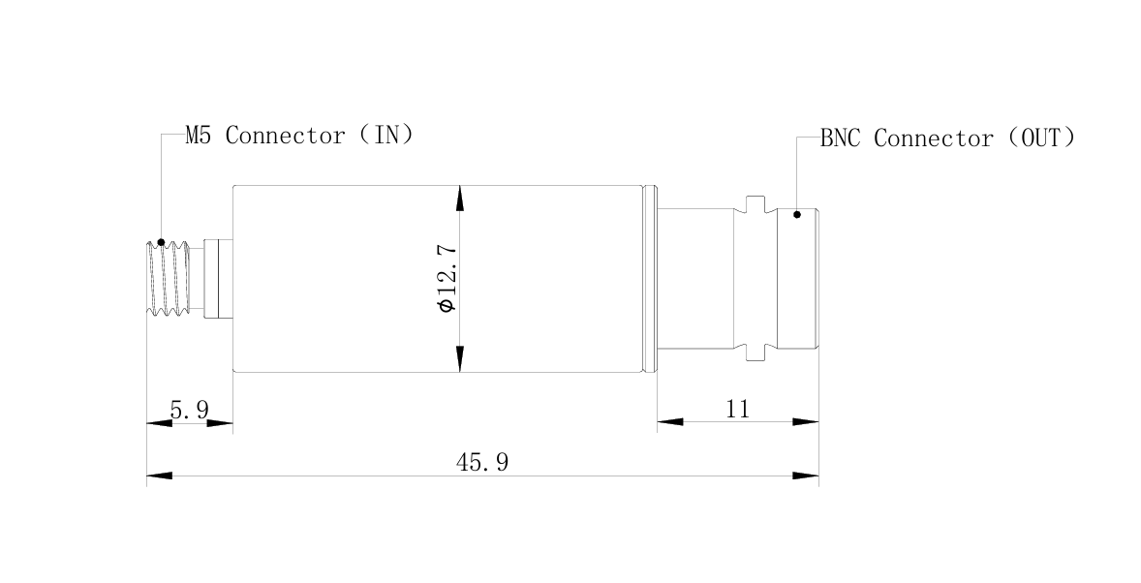

Dimensions（unit：mm）

A 821尺寸.png

Ordering Information

PNModelDescription
900010-21A 821Charge preamplifier
910024-01PM 0083Signal conditioner
730008-030102C030M5 Plug to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, length 3.0m
730008-060102C060M5 Plug to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, length 6.0m
730008-090102C090M5 Plug to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, length 9.0m
730008-000102CM5 Plug to BNC Plug,cable jacket diameter 1.9mm,blue PFA low noise cable,high temperature resistance 250℃, Customizable length
