Structural Acoustics Measurement Sensor
Structural Acoustics Measurement Sensor

SS 825-51

  • Structural Acoustics Measurement Sensor

  • The SS 825-51 Structural Acoustics Measurement Sensor consists of a high-sensitivity, low-noise accelerometer and a rubber vibration isolation mount. The main body is made of high-strength stainless steel, offering excellent hardness, corrosion resistance, and wear resistance. The sensor features high sensitivity and low noise. When used with the rubber vibration isolation mount, it is typically applied in automated testing scenarios such as automotive NVH testing, motor end-of-line testing, and modal analysis.

    The sensor portion of the SS 825-51 can also be detached and used separately, while the rubber vibration isolation mount helps prevent resonance with mechanical equipment during testing.


  • Description
  • Download

Description

Specifications

Sensitivity mV/g (±10%)

100

Range g

±50

Frequency response (complete unit) Hz

10Hz~10kHz±3dB

Frequency range (accelerometer)1Hz~8kHz(±5%)  8kHz~10kHz(±10%)

Maximum transverse sensitivit

≤5%

Amplitude linearity

≤1%

Shock limit pk

≥3000g

Resonant frequency Hz

≥40k

Operating voltage V

+12 - +28

Operating current mA

+2 - +10 (typical 4mA)

Operating temperature  ℃-40 - +120

Broadband noise

500μg

Bandwidth resolution g ms

0.001g ms

Magnetic sensitivity

1.5g/T

Sensing element

Piezoelectric ceramic

Structure type

Shear mode

Mounting method

Thread mounting

Recommended pressure5N – 10N

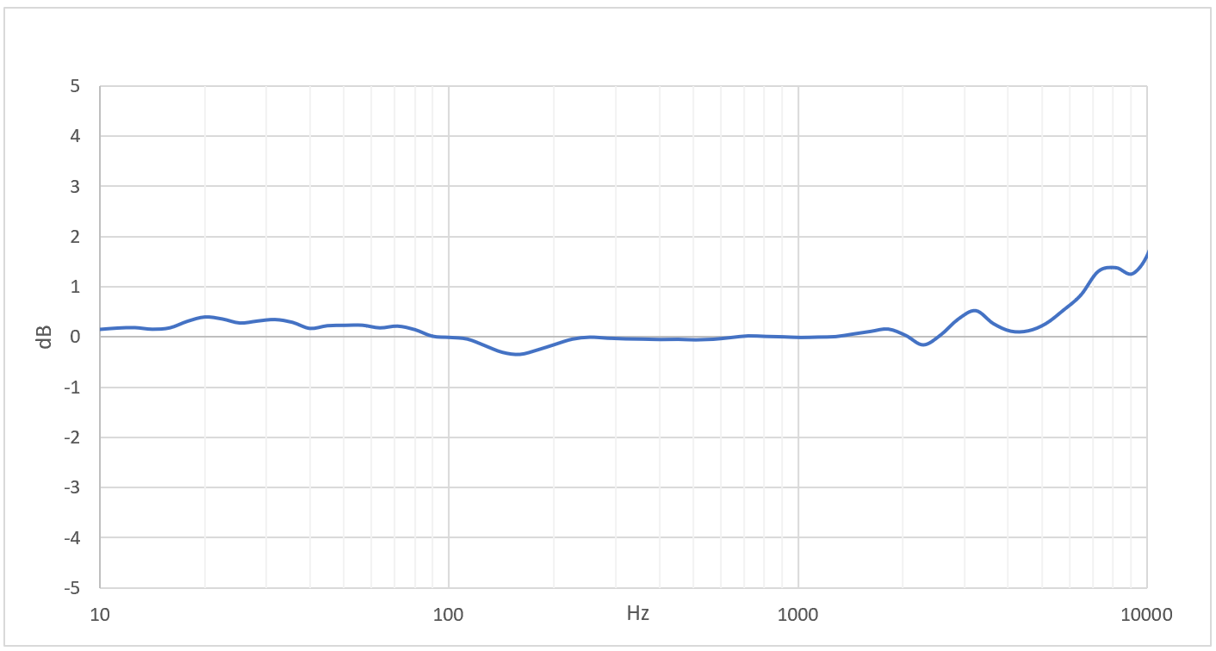

Frequency response

SS 825-51-曲线.png

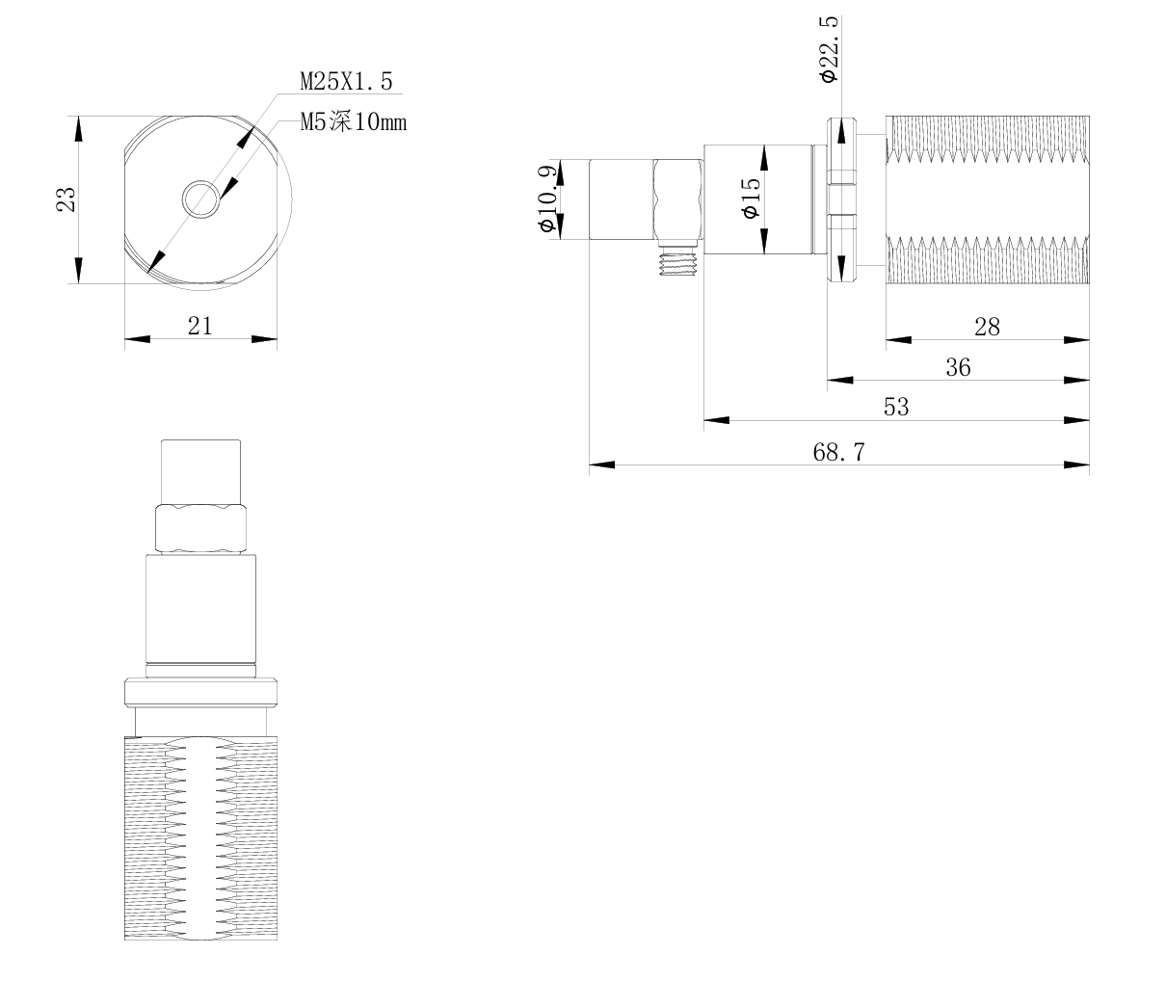

Overall Dimensios  mm

SS 825-51尺寸.png
